• DDR5 DIMM connector

Total of 2 results
Please Click products below, and click Add to Inquiry List for inquiry.

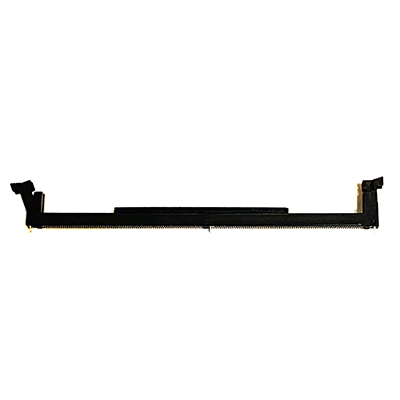

  • DDR5 RDIMM/LRDIMMU DIMM Socket, Vertical Type, 288pins

    KMCX4LDR5R0A51 DDR5 RDIMM/LRDIMMU DIMM Socket, Vertical Type, 288pins

    Description: DDR5 RDIMM/LRDIMM DIMM Socket, Vertical Type

    SPEC & Feature：

    • DDR5 RDIMM/LRDIMM DIMM Module Connector
    • Vertical Type / Standard Type
    • Pitch=0.85mm
    • Pin Counts: 288pins
    • SMT Type
    • Lead Free, Pb Free, RoHS Compliance

      Ratings：
    • Current Rating : 0.75A MAX
    • Voltage Rating: 25V AC
    • Contact Resistance: 20mΩ max.
    • Insulation Resistance:1000MΩ Min.
    • Dielectric Withstanding Voltage: 500VDC
    • Durability: 25 Cycles
    • The Peak Temperature on the Board Shall be maintained for 10 Seconds at 260℃
    • JEDEC Module Outlines: MO-329, JEDEC Socket Outlines: SO-023
    Application: Networking, embedded system, Server module Connector, PC Device, DIMM modular connector

    Drawing

  • DDR5 UDIMM DIMM Socket, Vertical Type, 288pins

    KMCX4LDR5U0A51 DDR5 UDIMM DIMM Socket, Vertical Type, 288pins

    Description: DDR5 UDIMML DIMM Socket, Vertical Type

    SPEC & Feature：

    • DDR5 UDIMML DIMM Module Connector
    • Vertical Type / Standard Type
    • Pitch=0.85mm
    • Pin Counts: 288pins
    • SMT Type
    • Lead Free, Pb Free, RoHS Compliance

      Ratings：
    • Current Rating: 0.75A MAX
    • Voltage Rating: 25V AC
    • Contact Resistance: 20mΩ max.
    • Insulation Resistance:1000MΩ Min.
    • Dielectric Withstanding Voltage: 500VDC
    • Durability: 25 Cycle
    • The Peak Temperature on the Board Shall be maintained for 10 Seconds at 260℃
    • JEDEC Module Outlines: MO-329, JEDEC Socket Outlines: SO-023
    Application: Networking, embedded system, Server module Connector, PC Device, DIMM modular connector

    Drawing
