DDR2/3/4/5 SO-DIMM connector

Category:
Vertical Type, Horizontal type, Short Latch, DDR SO-DIMM connector, Module socket, Modular receptacle, Bridge connector, Lead Free products, RoHS Compliant parts

Broadband, Embedded System, Netowrking System, Router, Switch HUB, Electronic Vehicle Panel, PC Motherboard, Note Book, Card Edge connector, Laptop

Total of 10 results

Please Click products below, and click Add to Inquiry List for inquiry.

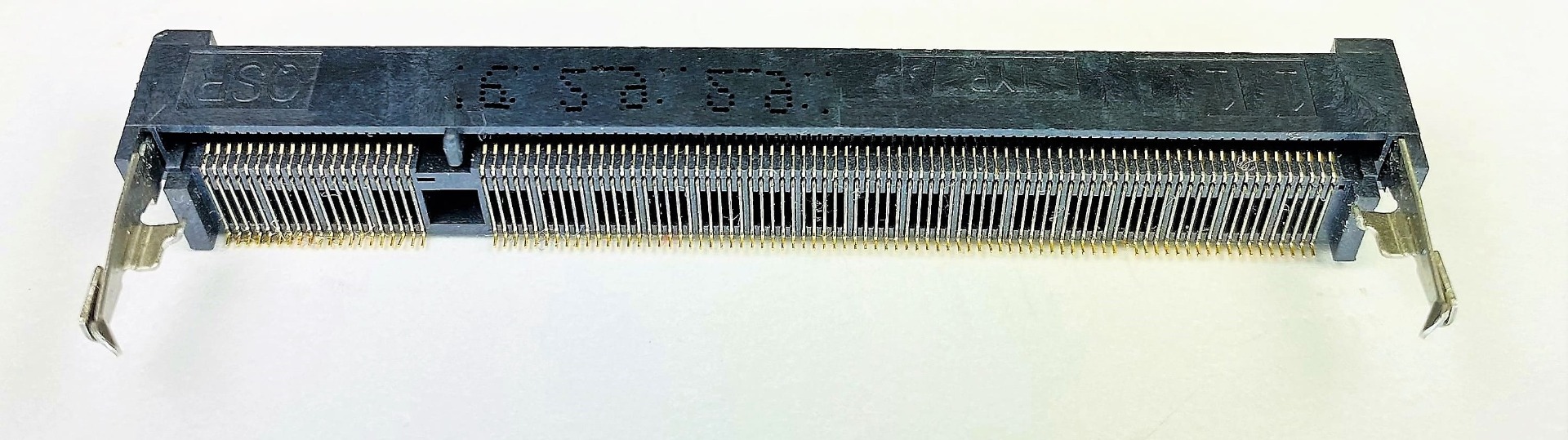

P/N: SODIMMDDRXVS-XXX-IMG_9552 (2) SO-DIMM DDR5 Series
Description: DDR4/5 SO-DIMM Module Connector

SPEC & Feature:
- SO-DIMM DDR4/5 module socket
- Vertical(180 Degree) and Horizontal Type(Right Angle)
- Standard and Reverse type
- Each PIN Pitch=0.50mm
- We have Horizontal Type Height: 4.0mm / 5.2mm / 8.0mm / 9.2mm
- Each Connector Types Pin Counts:
  　 4= 260pins
  　 5= 262pins
- R/A, SMT
- Mechnical Design: Plastic housing with Metal Latch
- Lead Free, Pb Free, RoHS Compliance
Ratings Information
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)

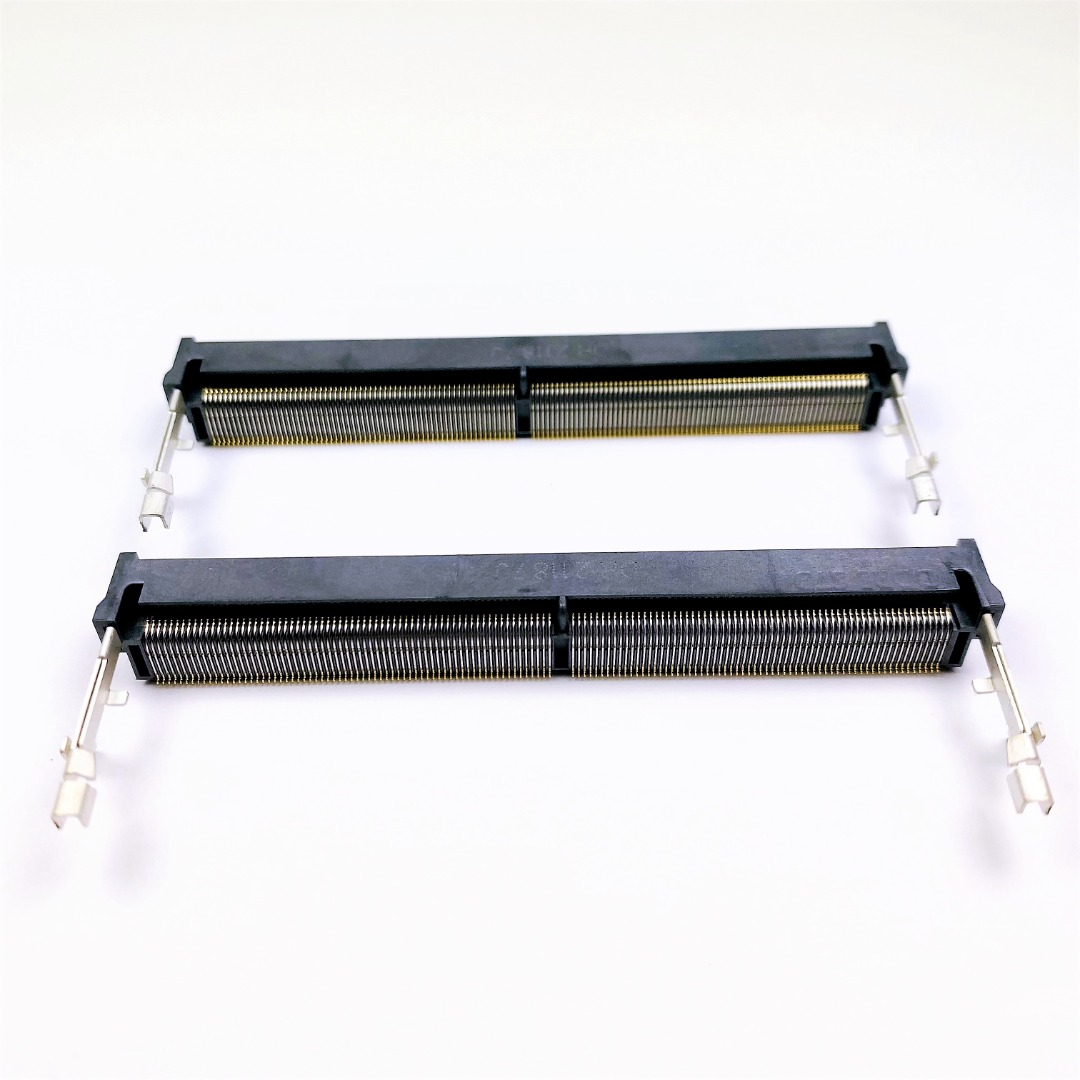

P/N: SODIMMDDRXVS-XXX-IMG_9575 (2) H=8.0mm Reverse Type
Description: SO-DIMM DDR 4/5 connector

SPEC & Feature:
- SO-DIMM DDR 4/5 socket
- Vertical/Horizontal Type
- Standard/Reverse type
- Pitch=0.50mm
- Horizontal Type Height: 4.0/5.2/8.0/9.2mm
- Connector Pin Counts:
  　 4= 260pins
  　 5= 262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)

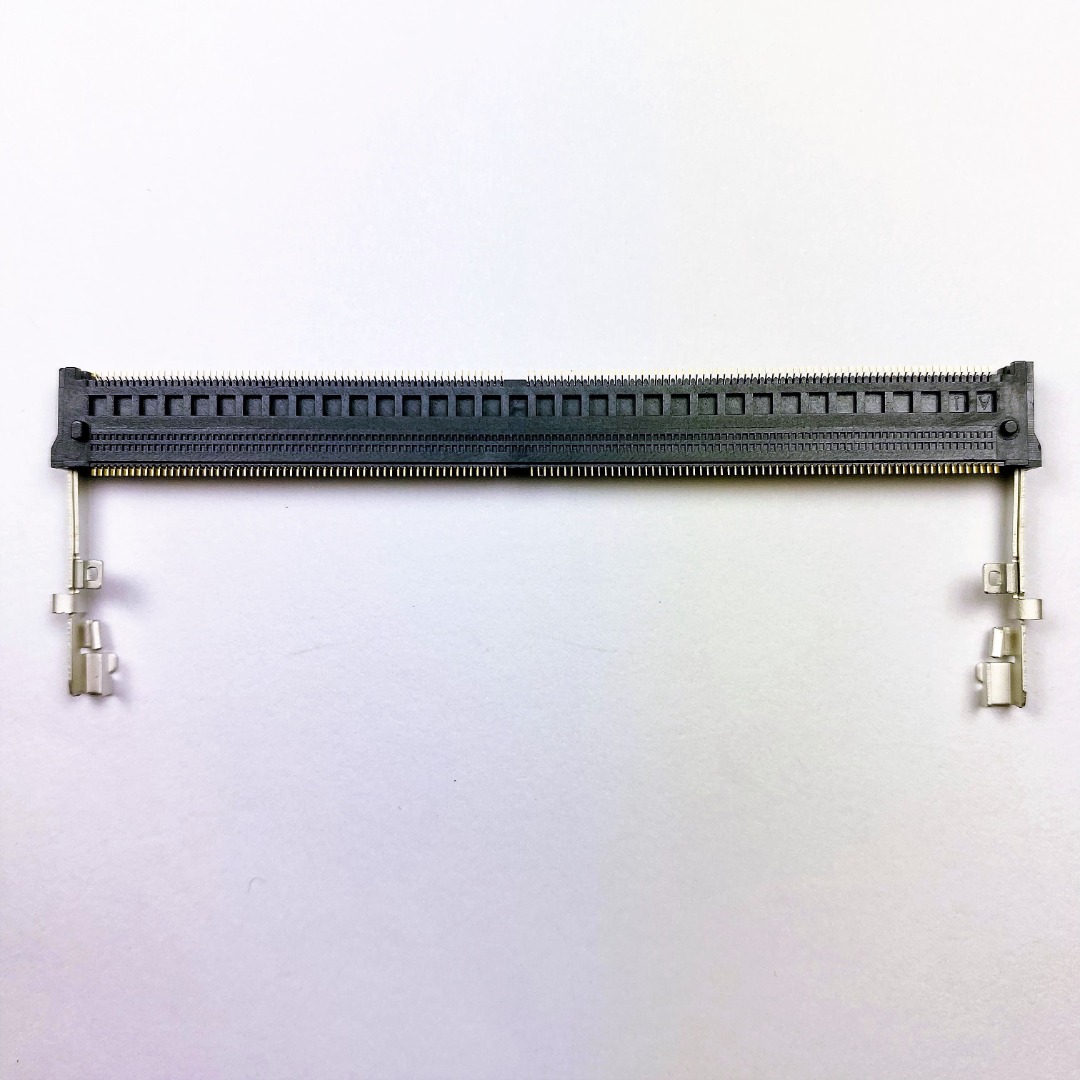

P/N: SODIMMDDRXVS-XXX-IMG_9572 (2) H=8.0mm Standard Type
Description: SO-DIMM DDR 4/5 connector

SPEC & Feature:
- SO-DIMM DDR 4/5 module socket
- Vertical/Horizontal Type
- Standard/Reverse type
- Pitch=0.50mm
- Horizontal Type Height: 4.0/5.2/8.0/9.2mm
- Connector Pin Counts:
  　 4= 260pins
  　 5= 262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)

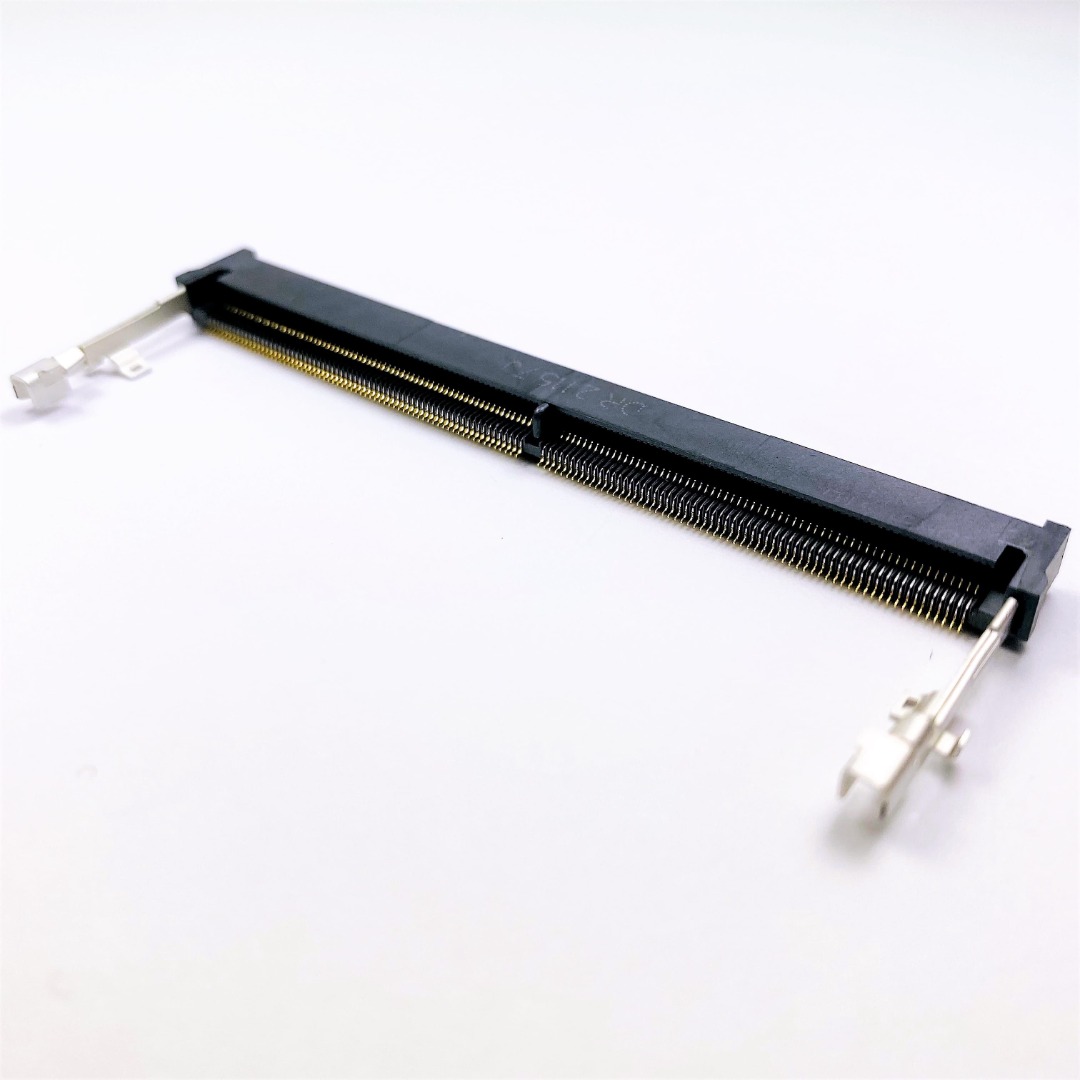

P/N: SODIMMDDRXVS-XXX-IMG_9569(2) H=4.0mm Series
Description: SO-DIMM DDR 4/5 connector

SPEC & Feature:
- SO-DIMM DDR 4/5 socket
- Vertical/Horizontal Type
- Standard/Reverse type
- Pitch=0.50mm
- Horizontal Type Height: 4.0/5.2/8.0/9.2mm
- Connector Pin Counts:
  　 4= 260pins
  　 5= 262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)

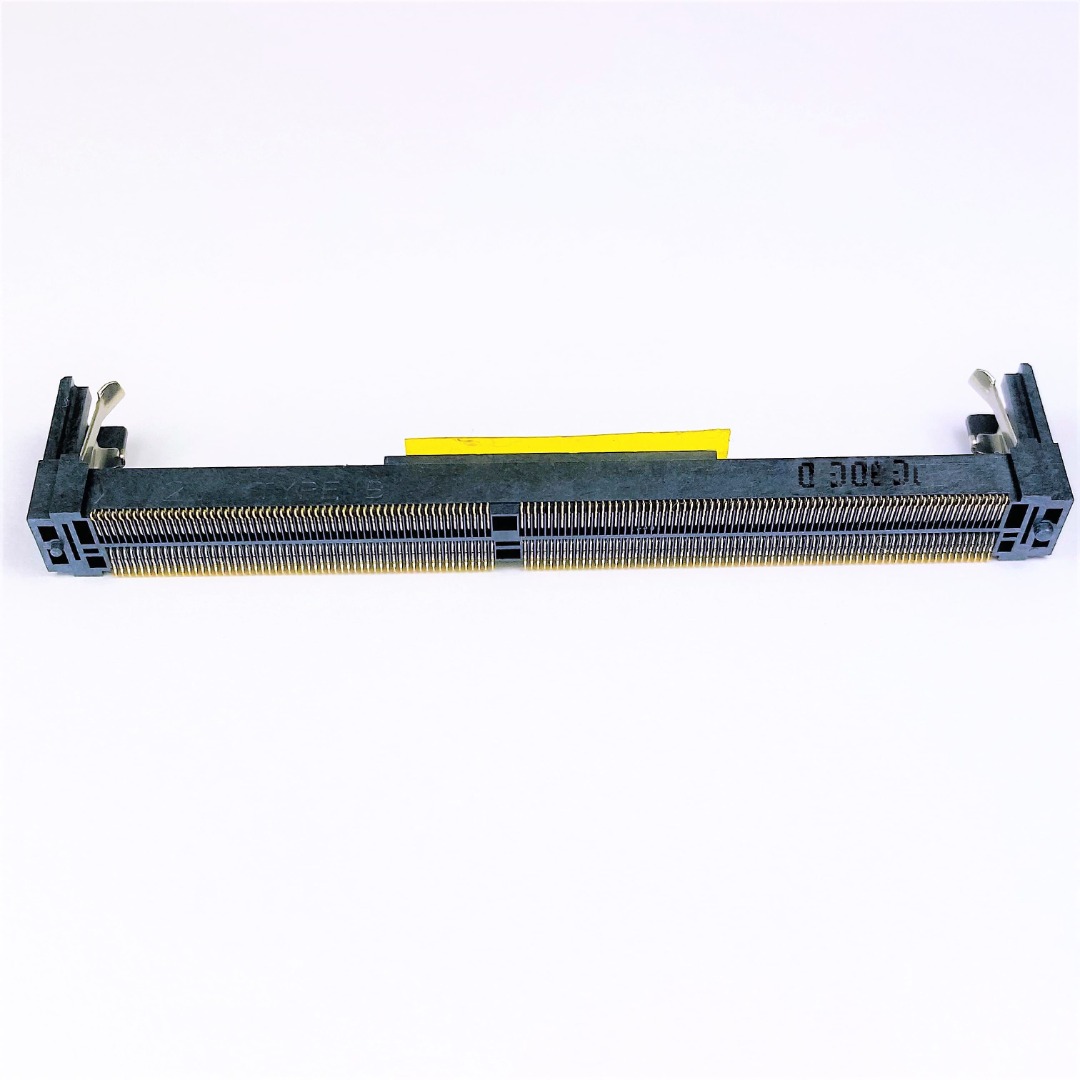

P/N: SODIMMDDRXVS-XXX-IMG_9565 (2) H=4.0mm Reverse Type
Description: SO-DIMM DDR 4/5 connector

SPEC & Feature:
- SO-DIMM DDR 4/5 socket
- Vertical/Horizontal Type
- Standard/Reverse type
- Pitch=0.50mm
- Horizontal Type Height: 4.0/5.2/8.0/9.2mm
- Connector Pin Counts:
  　 4= 260pins
  　 5= 262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
P/N: SODIMMDDRXVS-XXX-IMG_9558 (2) H=4.0mm Standard Type
Description: SO-DIMM DDR 4/5 module connector

SPEC & Feature:
- SO-DIMM DDR 4/5 module socket
- Vertical/Horizontal Type
- Standard/Reverse type
- Pitch=0.50mm
- Horizontal Type Height: 4.0/5.2/8.0/9.2mm
- Connector Pin Counts:
  　 4= 260pins
  　 5= 262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
P/N: SODIMMDDRXVS-XXX SO-DIMM DDR 4/5 Socket SO-DIMM DDR4 connector
Description: SO-DIMM DDR 4/5 Connector

SPEC & Feature:
- SO-DIMM DDR 4/5 module socket
- Vertical/Horizontal Type Connector
- Standard/Reverse type
- Pitch=0.50mm
- Horizontal Type Height: 4.0 / 5.2 / 8.0 / 9.2mm
- Connector Pin Counts:
  　 4= 260pins
  　 5= 262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Drawing
P/N: SODIMMDDRXVS-XXX-IMG_9205 (3) DDR2 DDR3 DDR4 DDR5 SO-DIMM Connector Series
Description: SO-DIMM DDR4/5 module connector
SPEC & Feature:
- SO-DIMM DDR 2/3/4/5 module socket
- Vertical/Horizontal Type
- Standard/Reverse type
- Pitch=0.50mm/0.60mm
- Horizontal Type Height: 4.0/5.2/8.0/9.2mm
- Connector Pin Counts:
2=200pins
3=204pins
4=260pins
5=262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Application: Networking, embedded sysem, Server module Connector, DIMM modular connector
P/N: SODIMMDDRXVS-XXX-IMG_9192 (3) DDR3 SO-DIMM Module Socket
Description: SO-DIMM DDR 3 Connector

SPEC & Feature:
- SO-DIMM DDR 3 module socket
- Vertical Type
- Standard/Reverse type
- Pitch=0.50mm
- Connector Pin Counts: DDR3= 204pins
- R/A, SMT
- Plastic housing with Metal Latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Drawing
KMCX4DR2V0A11 DDR2 SO-DIMM Connector
Description: DDR2 SO-DIMM Connector
P/N: KMCX4DR2V0A11
Feature & SPEC:
- Vertical Type, Standard A Type
- Pitch=0.6mm
- Pin count: 200pins, 1.8V
- Support International standard DDR2 SO-DIMM module card
- Plastic housing with Metal Latch
- Lead Free, Pb Free, RoHS Compliance
Drawing
