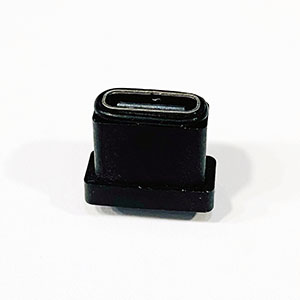

    P/N: KMTWR2811120601D1 USB Type C connector, H=10.75mm, IPX7 waterproof, Vertical Type

    Description: USB TYPE C connector, H=10.75mm, IPX7, Sealed Type

    SPEC & Feature:

    ELECTRICAL CHARACTERISTICS:

    • CURRENT RATING: 3A/ TOTAL POWER PIN
    • CONTACT RESISTANCE: 40 MILLIONHM MAX.
    • DIELECTRIC WITHSTANDING VOLTAGE: 100 VAC r.m.s
    • INSULATION RESISTANCE: 100 MEGOHMS MIN.

    MECHANICAL CHARACTERISTICS:

    • INSERTION FORCE: 5~20N
    • EXTRACTION FORCE: Initial:8~20N;Durability:5~20N(10000 cycles);
    • DURABILITY:10000 CYCLES

    ENVIRONMENTAL CHARACTERISTICS:

    • TEMPERATURE RANGE: -40 °C~ 85 °C
