• P/N: SODIMMDDRXVS-XXX-IMG_9552 (2) SO-DIMM DDR5 Series
    P/N: SODIMMDDRXVS-XXX-IMG_9552 (2) SO-DIMM DDR5 Series P/N: SODIMMDDRXVS-XXX-IMG_9552 (2) SO-DIMM DDR5 Series P/N: SODIMMDDRXVS-XXX-IMG_9552 (2) SO-DIMM DDR5 Series

    P/N: SODIMMDDRXVS-XXX-IMG_9552 (2) SO-DIMM DDR5 Series

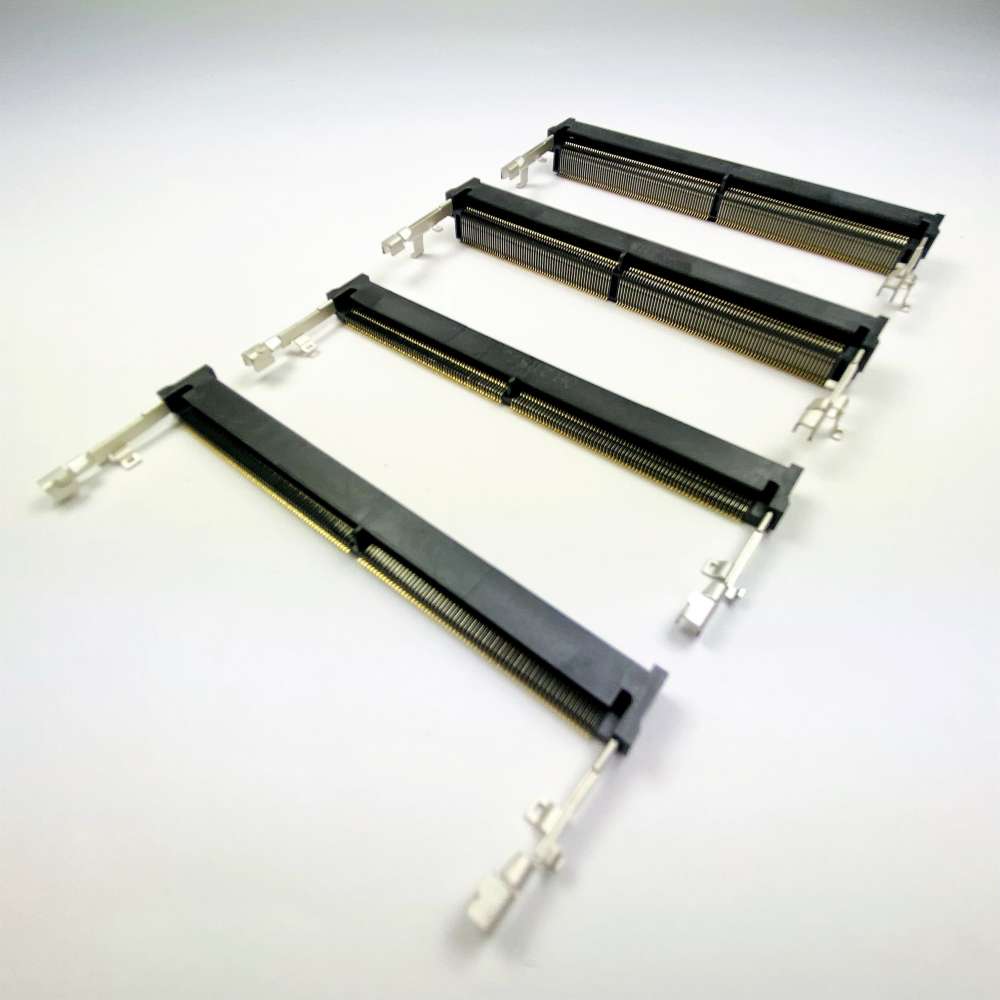

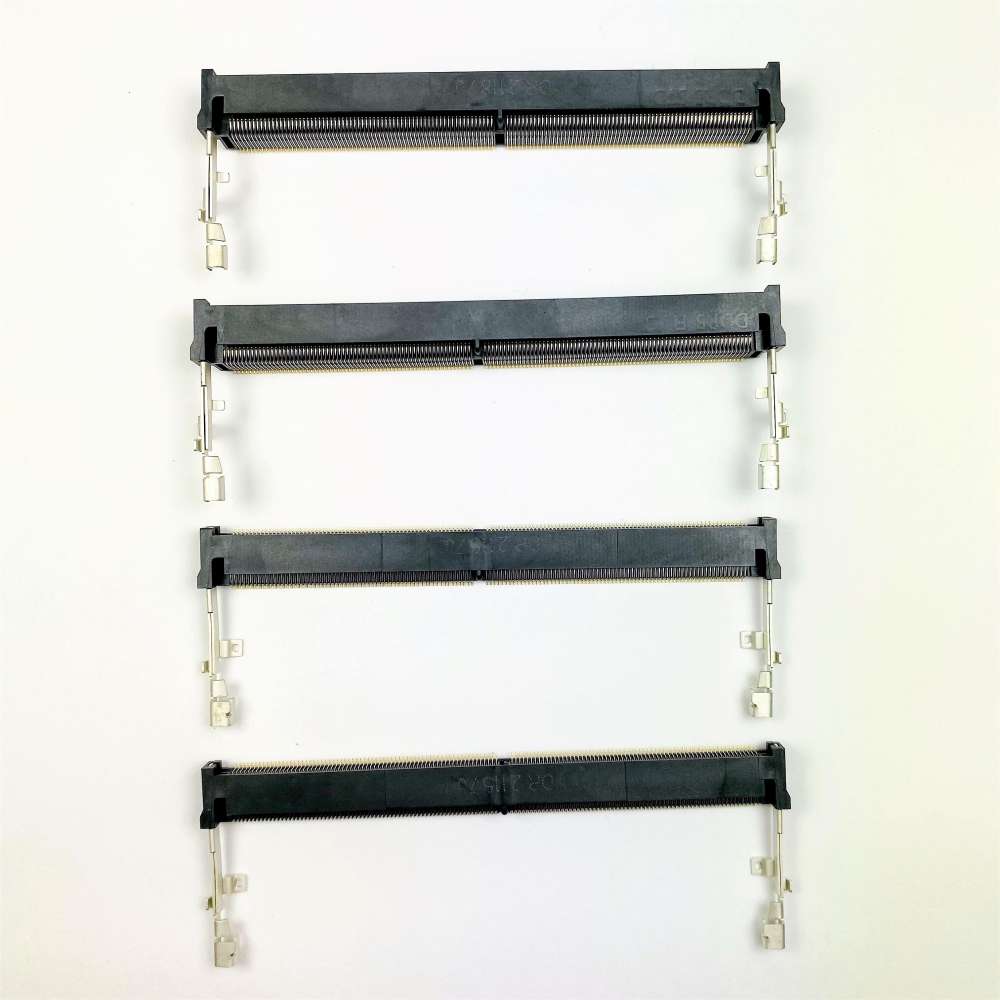

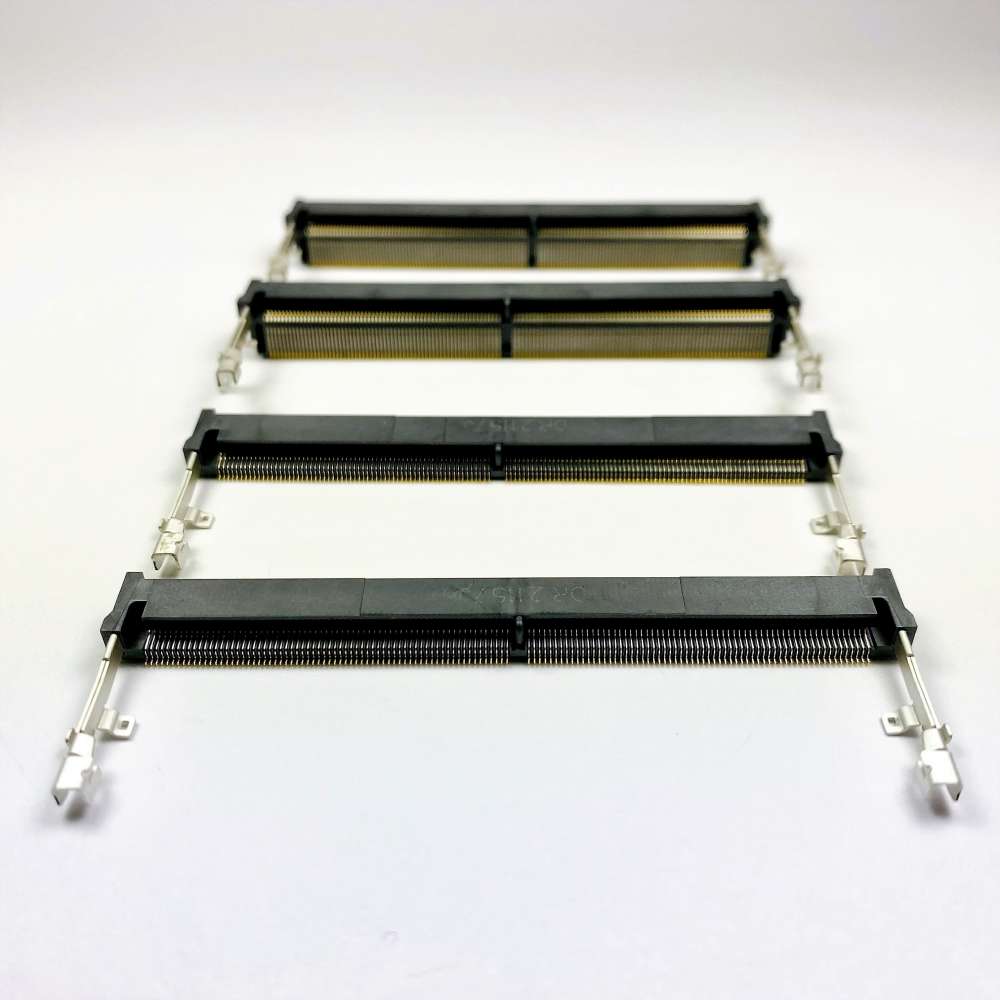

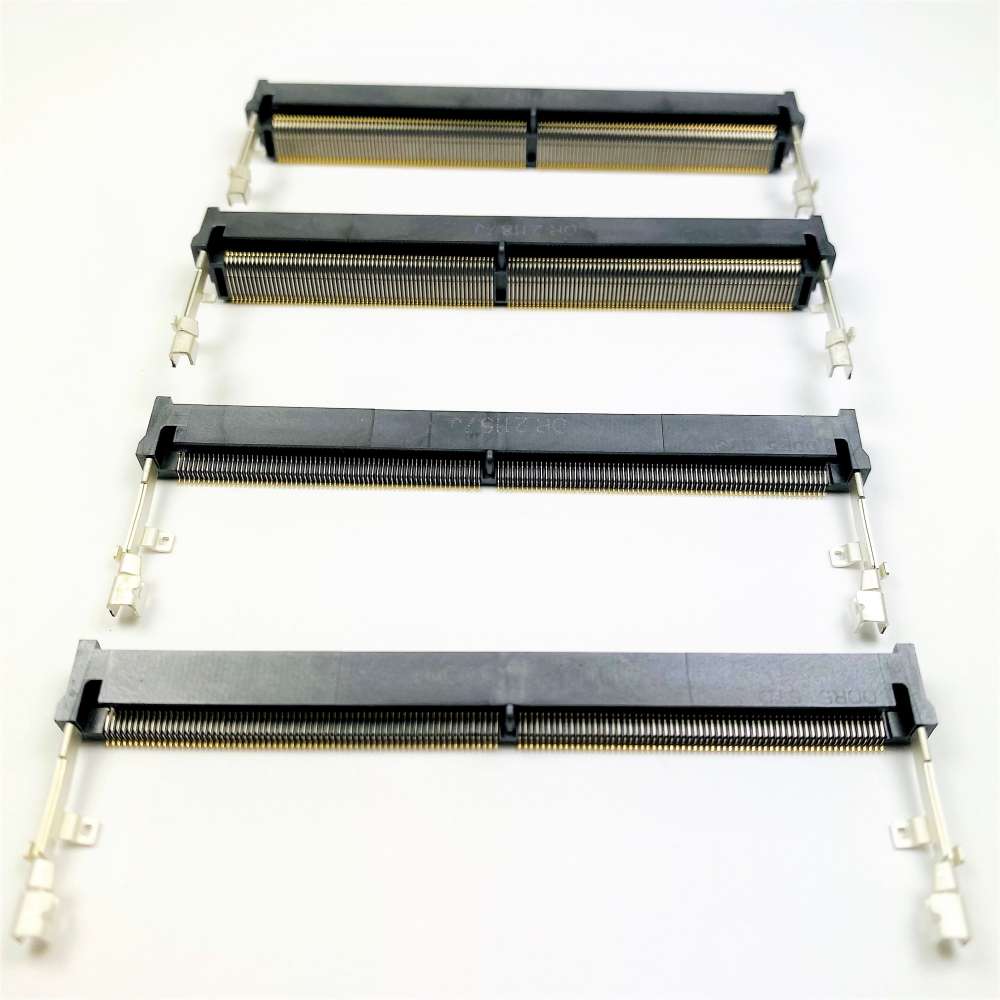

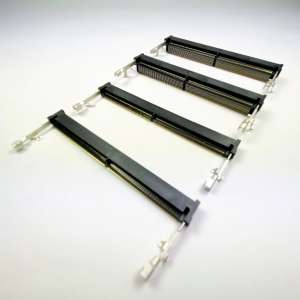

    Description: DDR 2/3/4/5 SO-DIMM Module Connector

    SPEC & Feature:

    • SO-DIMM DDR 2/3/4/5 module socket
    • Vertical(180 Degree) and Horizontal Type(Right Angle)
    • Standard and Reverse type
    • Each PIN Pitch=0.50mm
    • We have Horizontal Type Height: 4.0mm / 5.2mm / 8.0mm / 9.2mm
    • Each Connector Types Pin Counts:
      　 2= 200pins
      　 3= 204pins
      　 4= 260pins
      　 5= 262pins
    • R/A, SMT
    • Mechnical Design: Plastic housing with Metal Latch
    • Lead Free, Pb Free, RoHS Compliance


    Ratings Information

    • Voltage：25V AC rms)
    • Current：0.6A (per pin)
    • Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
