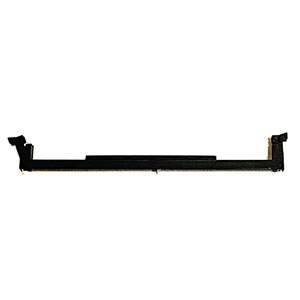

• P/N: KMCX4LDR5U0A51 DDR5 UDIMM DIMM Socket, Vertical Type, 288pins

    P/N: KMCX4LDR5U0A51 DDR5 UDIMM DIMM Socket, Vertical Type, 288pins

    Description: DDR5 UDIMML DIMM Socket, Vertical Type

    SPEC & Feature:
    DDR5 UDIMML DIMM Module Connector
    Vertical Type
    Standard Type
    Pitch=0.85mm
    Pin Counts: 288pins
    SMT Type
    Lead Free, Pb Free, RoHS Compliance

    Ratings:
    Current Rating: 0.75A MAX
    Voltage Rating: 25V AC
    Contact Resistance: 20mΩ max.
    Insulation Resistance:1000MΩ Min.
    Dielectric Withstanding Voltage: 500VDC
    Durability: 25 Cycle
    The Peak Temperature on the Board Shall be maintained for 10 Seconds at 260℃
    JEDEC Module Outlines: MO-329, JEDEC Socket Outlines: SO-023


    Application: Networking, embedded sysem, Server module Connector, PC Device, DIMM modular connector


    Drawing
