DDR4/5 SO-DIMM connector

Category:
Vertical Type, Horizontal type, Short Latch, DDR SO-DIMM connector, Module socket, Modular receptacle, Bridge connector, Lead Free, RoHS Compliant parts

Broadband Server, Embedded System, Networking System, Router, Switch HUB, Electronic Vehicle Panel, PC Motherboard, Note Book, Card Edge connector, Laptop, AI Simulator Device

Total of 15 results

Please Click products below, and click Add to Inquiry List for inquiry.

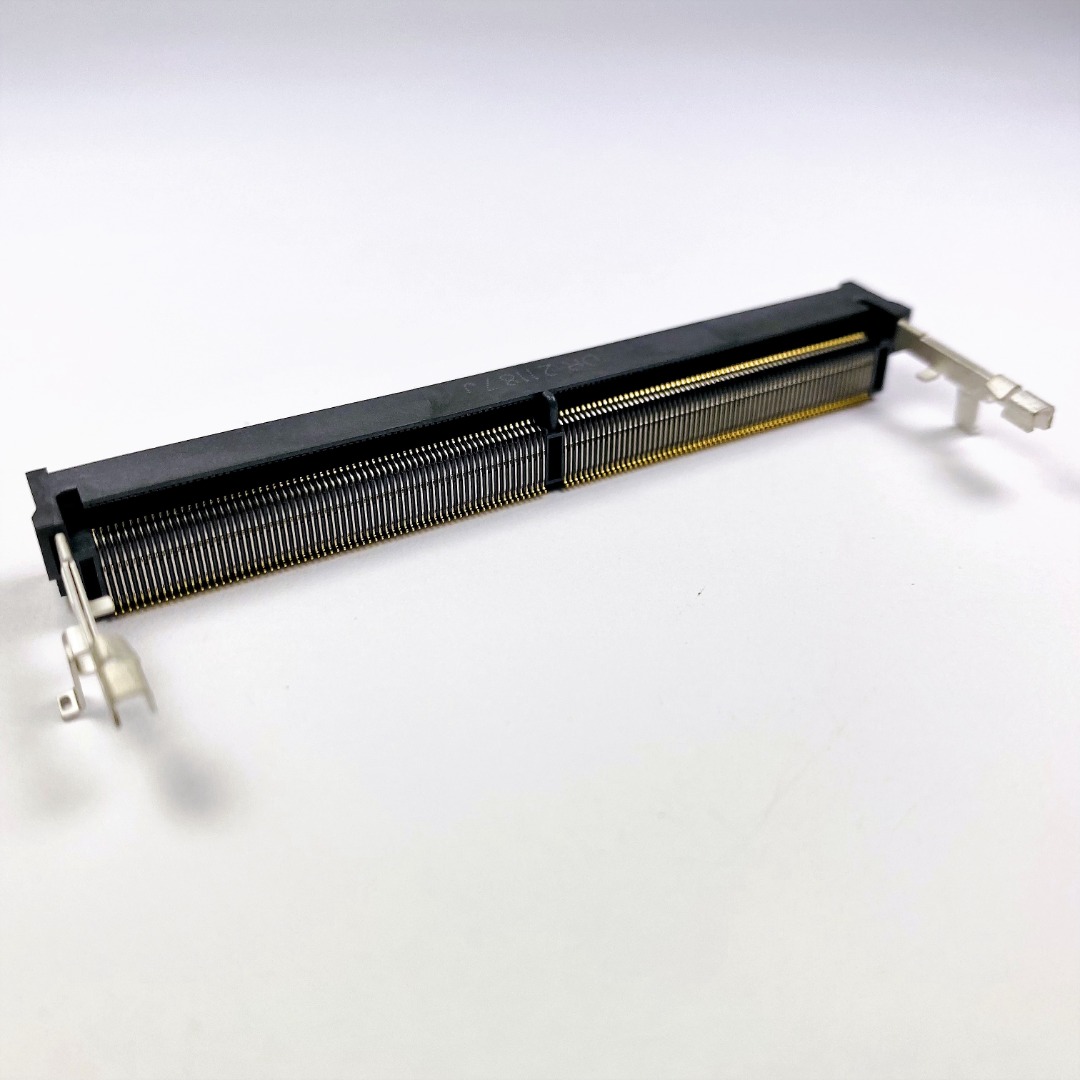

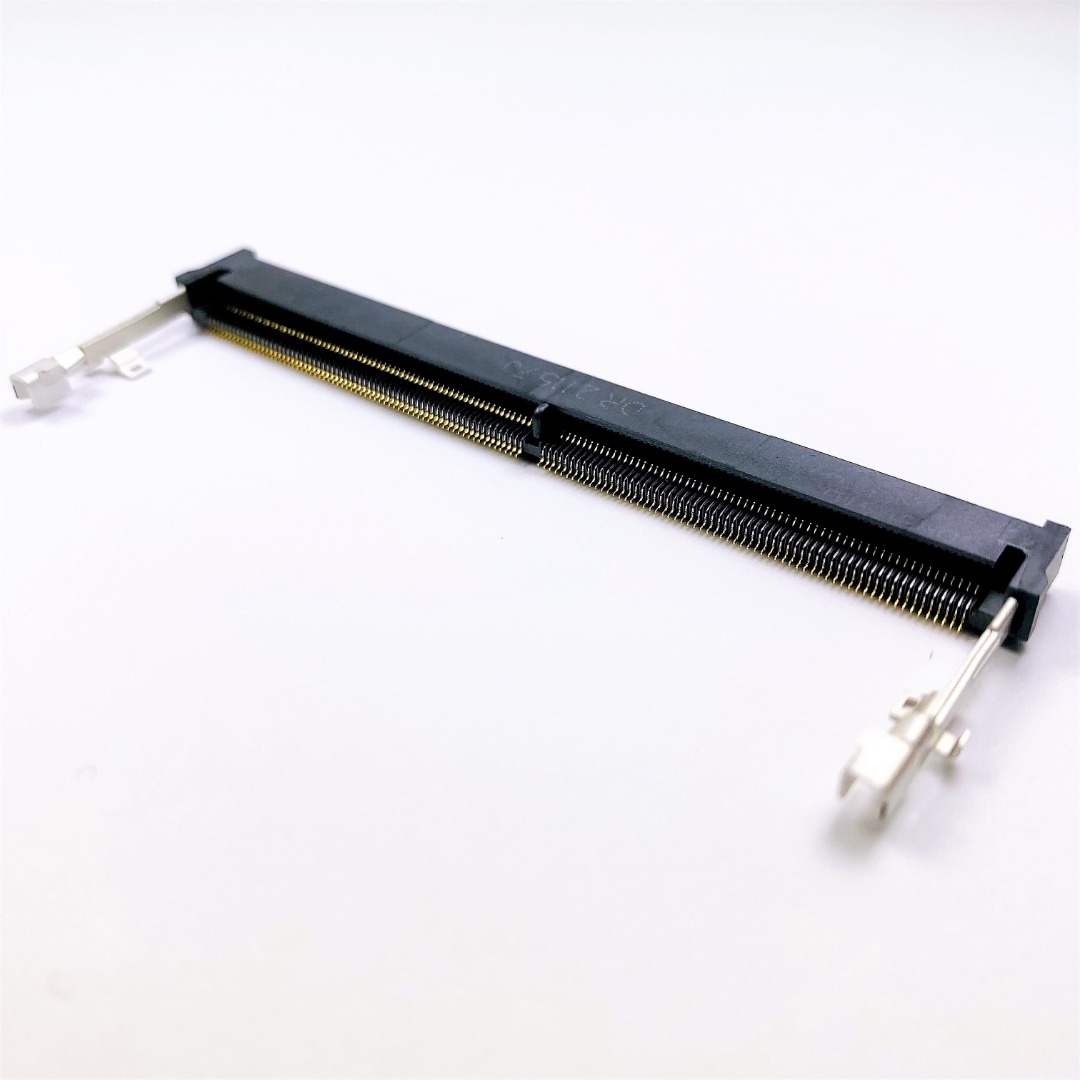

KMCX4DR580A17X SO-DIMM DDR5 connector, Horizontal Type, Standard Type, Pitch=0.5mm, 262pins, H=8.0mm
Description: SO-DIMM DDR 5 connector
SPEC & Feature:
- Horizontal Type
- Standard Type
- Pitch= 0.5mm
- Height= 8.0mm
- 262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Drawing

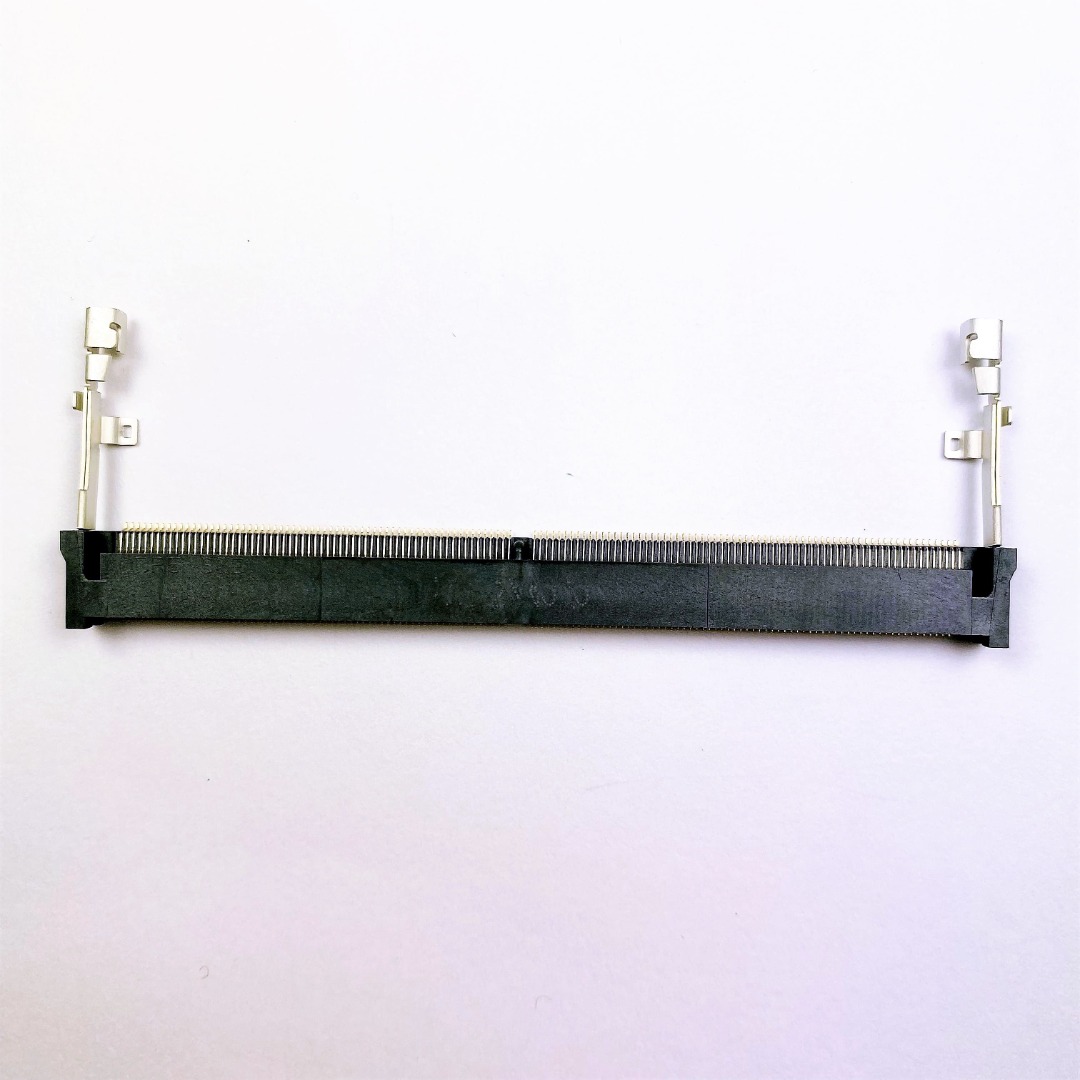

KMCX4DR552A171 SO-DIMM DDR5 connector, Horizontal Type, Standard Type, Pitch=0.5mm, 262pins, H=5.2mm
Description: SO-DIMM DDR 5 connector
SPEC & Feature:
- Horizontal Type
- Standard Type
- Pitch= 0.5mm
- Height= 5.2mm
- 262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Drawing

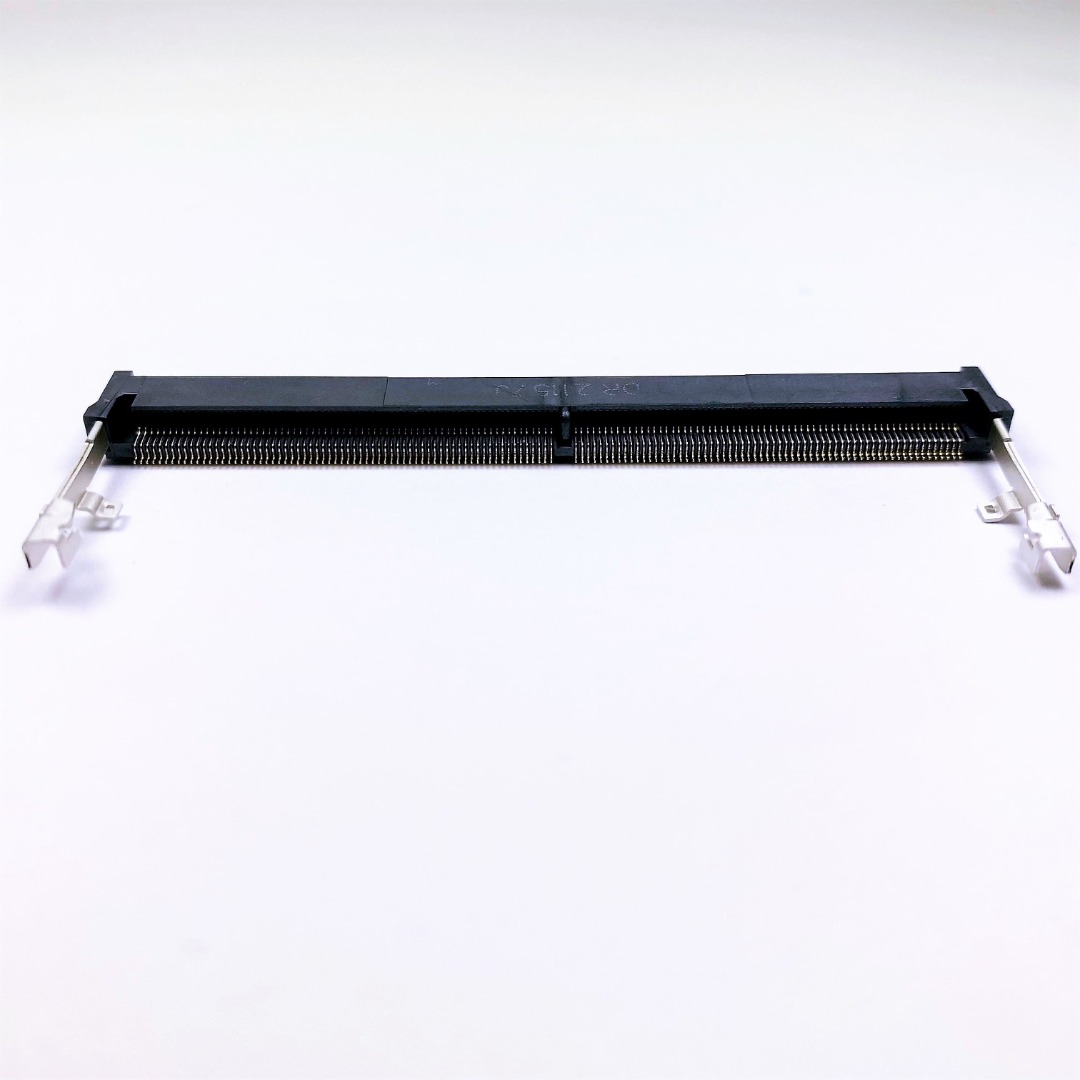

KMCX4DR540A17X SO-DIMM DDR5 connector, Horizontal Type, Standard Type, Pitch=0.5mm, 262pins, H=4.0mm
Description: SO-DIMM DDR 5 connector
SPEC & Feature:
- Horizontal Type
- Standard Type
- Pitch= 0.5mm
- Height= 4.0mm
- 262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Drawing

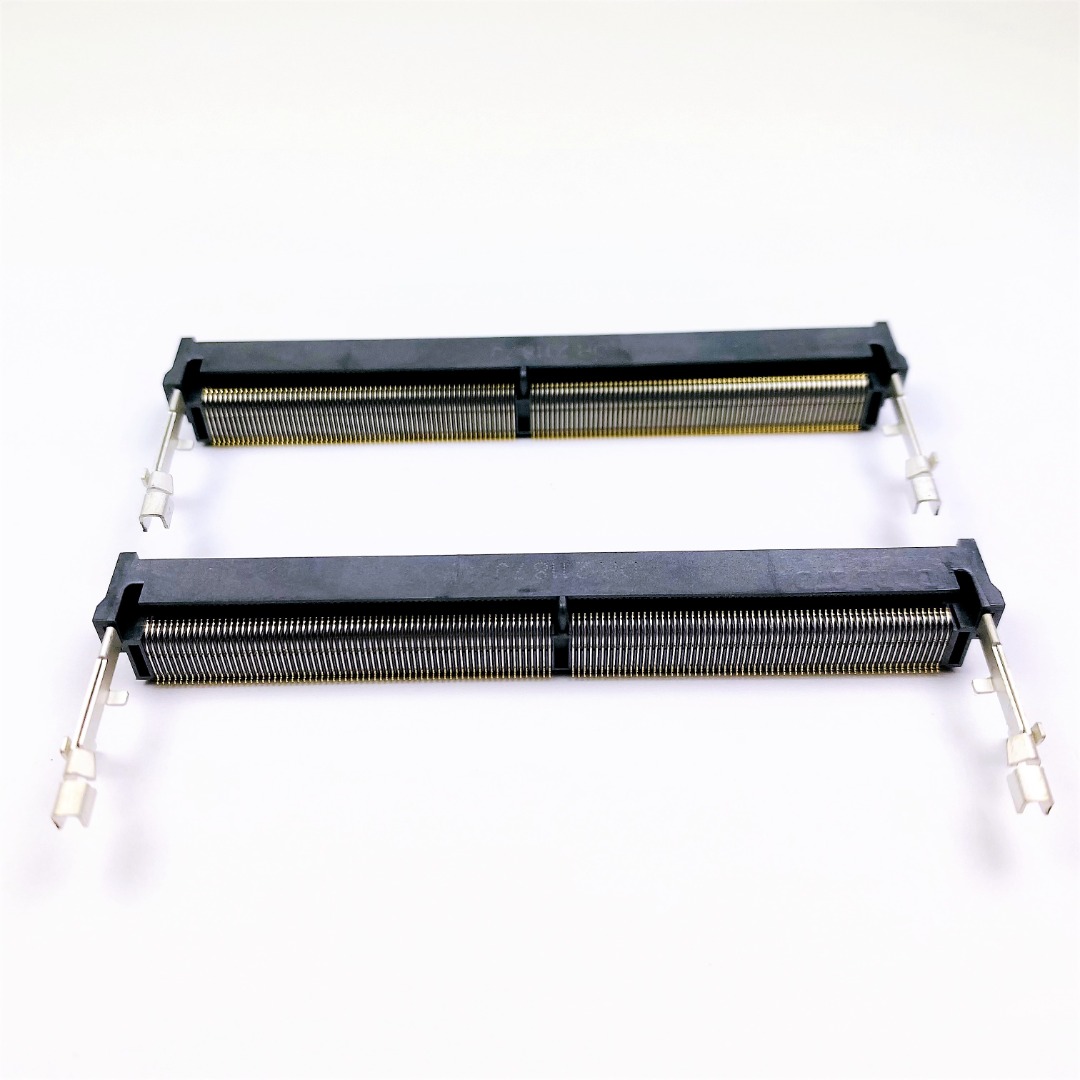

SODIMMDDRXVS-XXX-IMG_9552 (2) SO-DIMM DDR5 Series
Description: DDR5 SO-DIMM Module Connector

SPEC & Feature:
- SO-DIMM DDR5 module socket
- Horizontal Type(Right Angle)
- Standard and Reverse type
- PIN Pitch=0.50mm
- Height: 4.0mm / 5.2mm / 8.0mm / 9.2mm
- 262pins
- R/A, SMT
- Mechanical Design: Plastic housing with Metal Latch
- Lead Free, Pb Free, RoHS Compliance
Ratings Information
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)

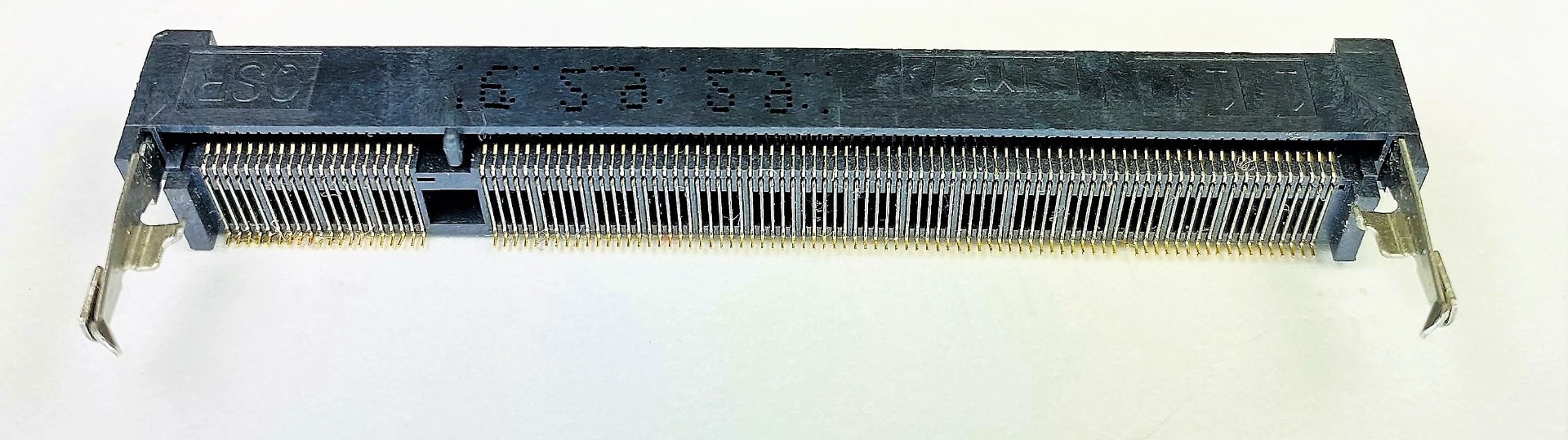

KMCX4DR452A11 SO-DIMM DDR 4 connector, Horizontal, Standard Type, Pitch=0.5mm, 260pins, H=5.2mm, 1.2V
Description: SO-DIMM DDR 4 connector
SPEC & Feature:
- Horizontal Type
- Standard Type
- Pitch= 0.5mm
- Height= 5.2mm
- 260pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings:
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Drawing
KMCX4DR480A11 SO-DIMM DDR 4 connector, Horizontal Type, Standard Type, Pitch=0.50mm, H=8.0mm, 260pins, 1.2V
Description: SO-DIMM DDR 4 connector
SPEC & Feature:
- Horizontal Type
- Standard Type
- Pitch=0.50mm
- Height: 8.0mm
- 260 Pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings:
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Drawing
KMCX4DR492A11 SO-DIMM DDR4 connector, Horizontal Type, Standard Type, Pitch=0.5mm, 260pins, H=9.2mm, 1.2V
Description: SO-DIMM DDR 4 connector
SPEC & Feature:
- Horizontal Type
- Standard Type
- Pitch= 0.5mm
- Height= 9.2mm
- 260pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings:
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Drawing
KMCX4DR440A12 SO-DIMM DDR4 connector, Horizontal Type, Standard Type, Pitch=0.5mm, 260pins, H=4.0mm, 1.2V
Description: SO-DIMM DDR 4 connector
SPEC & Feature:
- Horizontal Type
- Standard Type
- Pitch= 0.5mm
- Height= 4.0mm
- 260pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Drawing

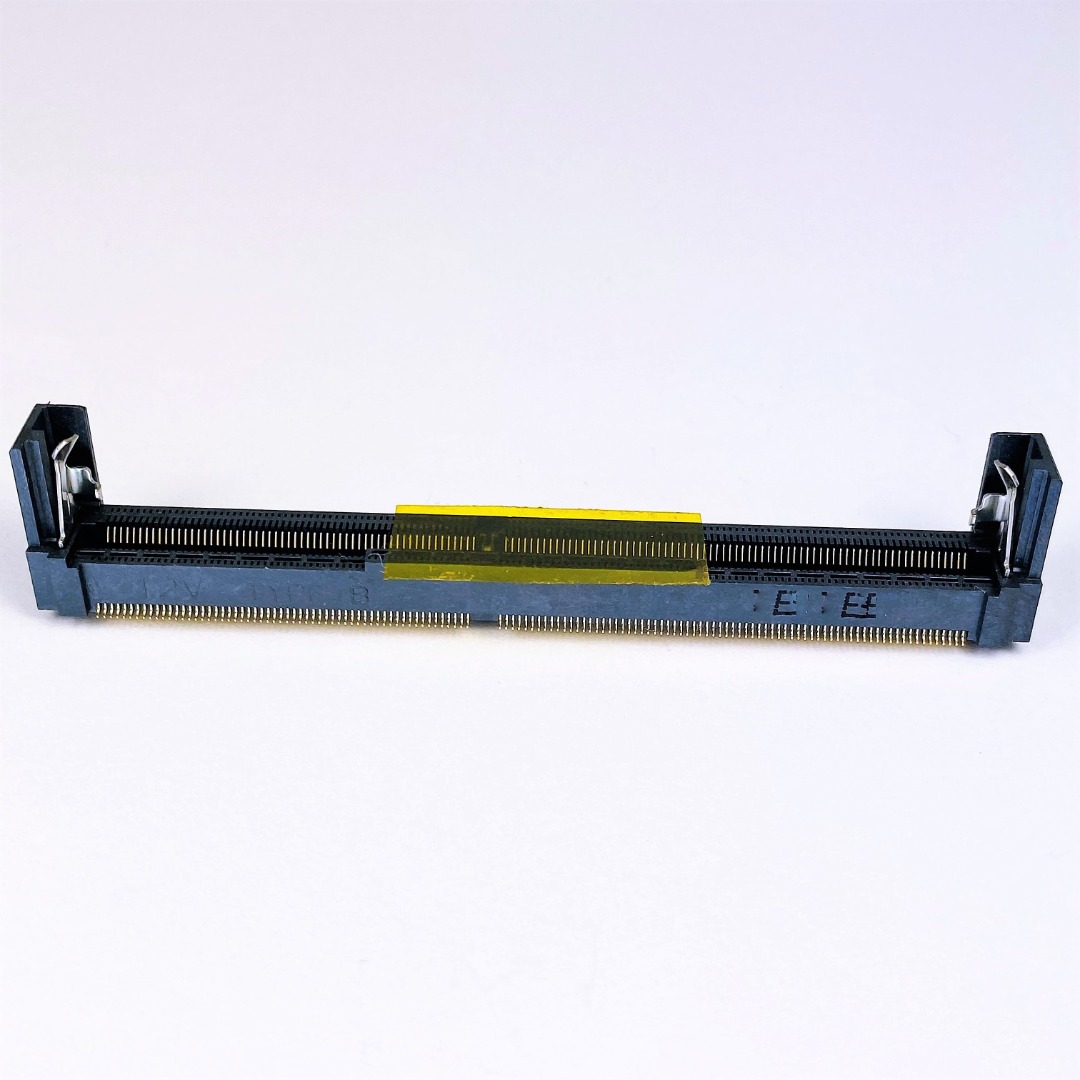

KMCX4DR4V0B11 SO-DIMM DDR4 Socket
Description: SO-DIMM DDR 4 Connector
SPEC & Feature:
- Vertical Type
- Pitch= 0.5mm
- Reverse Type
- 260pins
- R/A, SMT
- Plastic housing with Metal Latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.5A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
Drawing

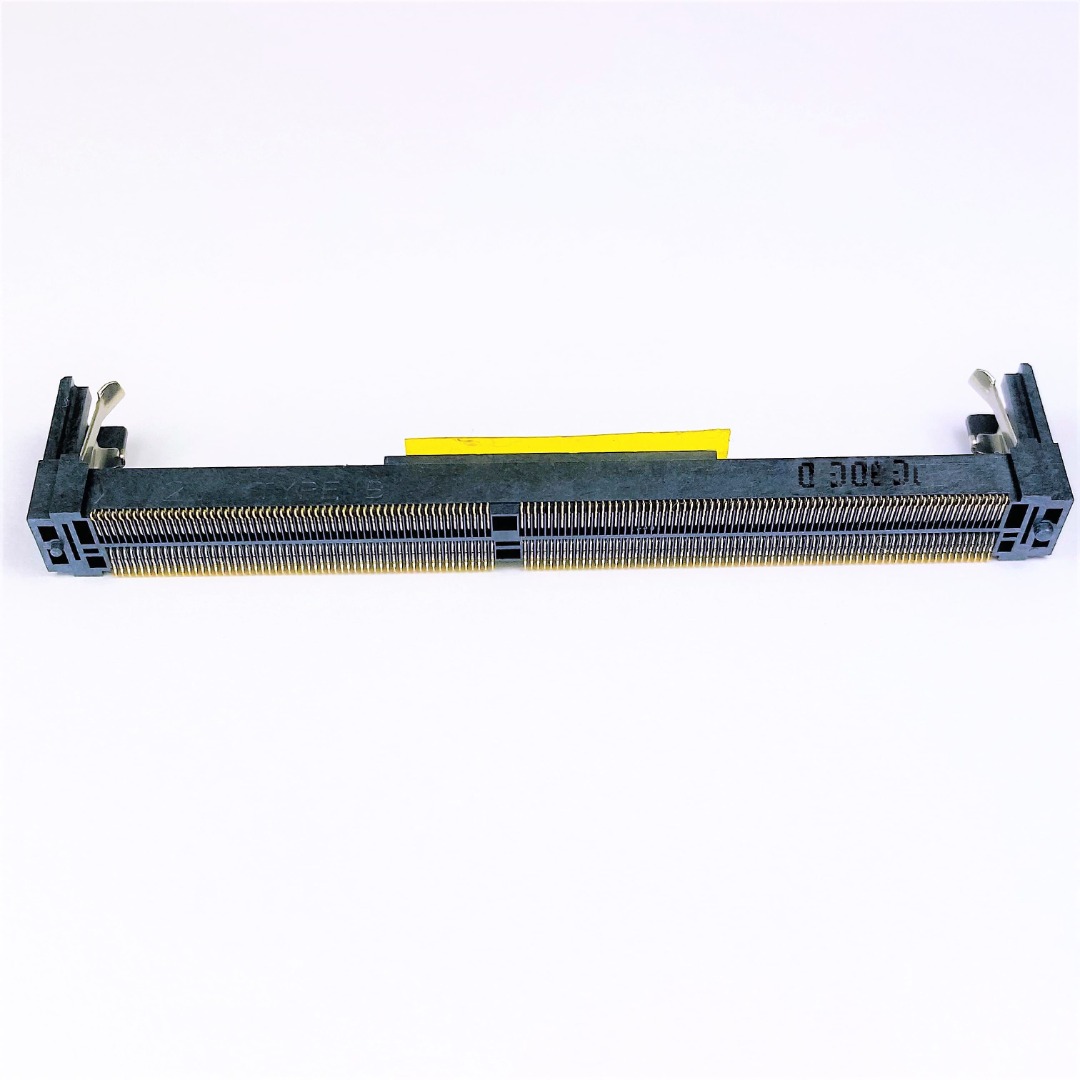

SODIMMDDRXVS-XXX-IMG_9575 (2) H=8.0mm Reverse Type
Description: SO-DIMM DDR 4/5 connector

SPEC & Feature:
- SO-DIMM DDR 4/5 socket
- Vertical/Horizontal Type
- Standard/Reverse type
- Pitch=0.50mm
- Horizontal Type Height: 4.0/5.2/8.0/9.2mm
- Connector Pin Counts:
  　 4= 260pins
  　 5= 262pins
- R/A, SMT
- Plastic housing with Metal latch
- Lead Free, Pb Free, RoHS Compliance
Ratings
- Voltage：25V AC rms)
- Current：0.6A (per pin)
- Operating Temperature：-55~85℃ (Humidity range 85% RH max.)
